Ascendo-The 12
Specifications
| Speaker type | 12″ Time coherent point-source coaxial |
| Principle | Vented |
| Passive / Active | Passive |
| SPL | Measurement data 122 dB cont. / 132 dB peak |
| Frequency range | Measurement data 95 Hz – 20 kHz / -3dB |
| Efficiency | 99 dB / 1W/m |
| Power Handling | 600 W |
| Impedance | 8 Ω |
| Woofer | 12″ woofer featuring lightweight paper cone and high-power long throw magnet system |
| Tweeter | 1″ Compression driver |
| Directivity Horizontal x Vertical in Deg° | 85° x 85° |
| Input Terrminal | One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post |
| Enclosure | MDF |
| Width | 15,35 ” | 390 mm |
| Height | 24,21 ” | 615 mm |
| Depth With Plug | 6,89 ” | 175 mm |
| Depth with grill | 7,24 ” | 184 mm |
| Depth grill | 0,35 ” | 9 mm |
| Weight | 47,4 lbs | 22,0 kg |
| Finish | Matte black |
| Custom colour options | Piano lacquer, colour of choice, matt or other finishes upon request |
| Shape customization | Upon request |

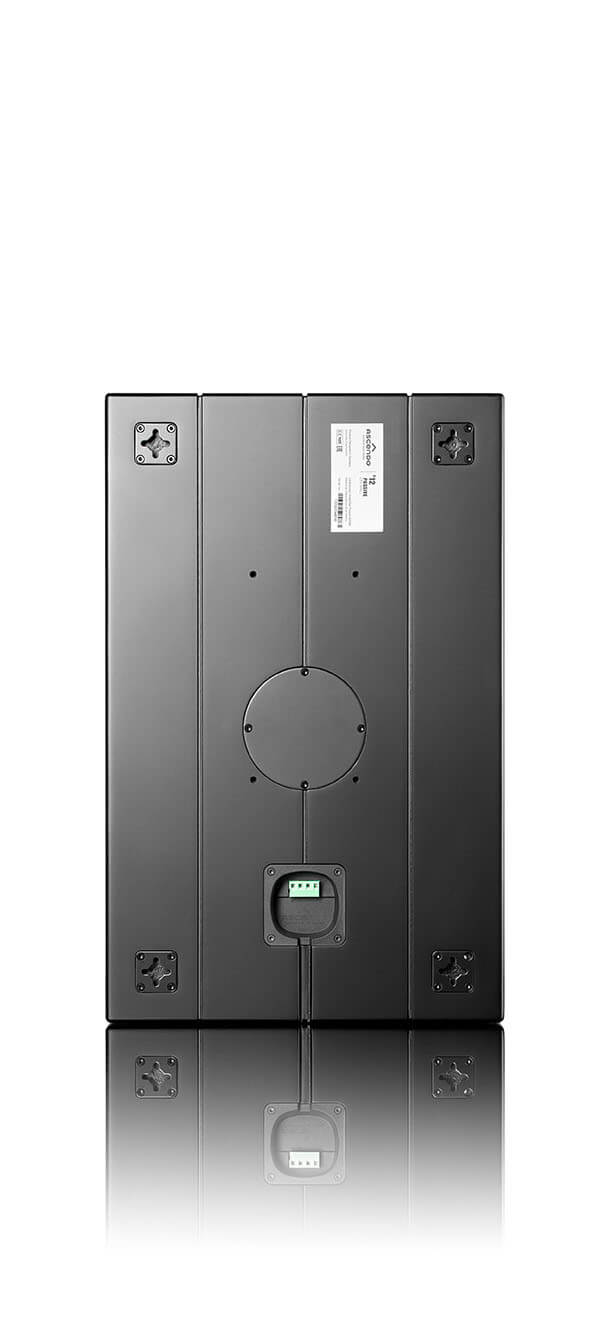

| Mounting | 4 x wall brackets for horizontal and vertical installation + VESA 200 x 100 mounting points |
All speakers are supplied with a front cover as standard
Technical modifications subject to change without further notice
- The12 PASSIVE ON WALL is positioned perfectly in the ASCENDO monitor lineup, a more dynamic and higher output alternative to the smaller The10 PASSIVE ON-WALL, and a stellar performance value compared to its more expensive, even higher-performance sibling, The12 PRO PASSIVE ON WALL.

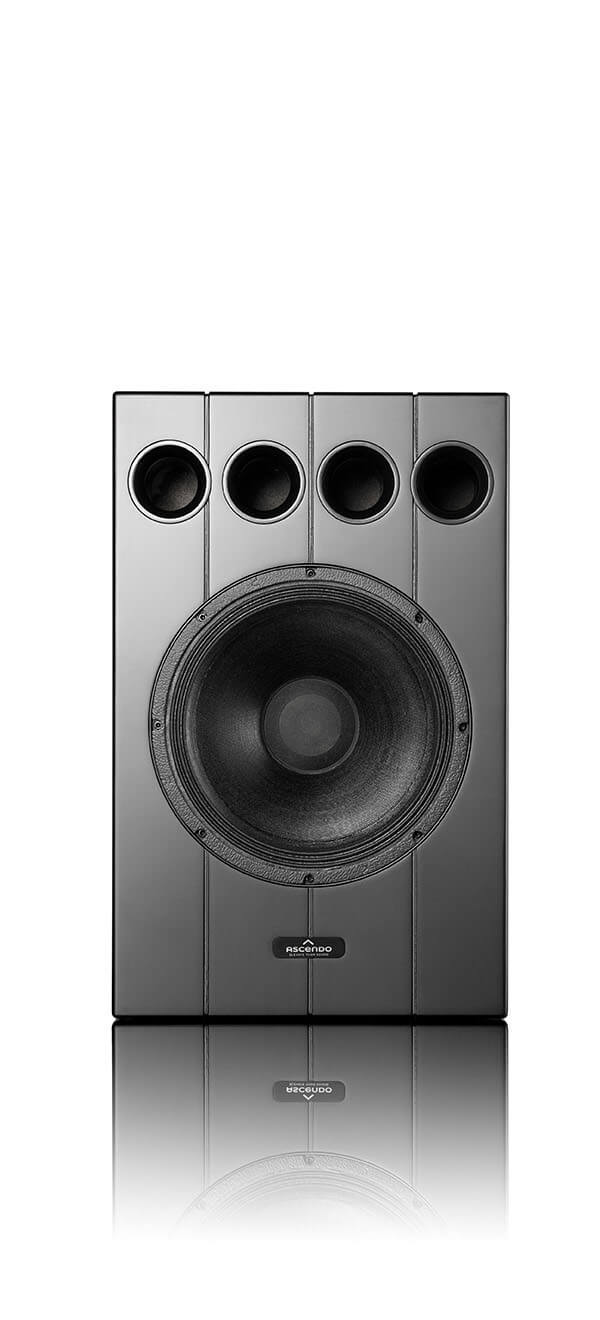

- The combination of 12-inch mid-woofer and the exclusive, centrally arranged compression tweeter allows for a time-coherent and phase-accurate cinema loudspeaker a cut above the best of the cinema monitors in the market. The highly solid enclosure, elaborately conceived in the light of over 20 years of speaker design experience, ensures extraordinary stable conditions to make parasitic vibrations a thing of the past.
- This is time-coherent rendering of all acoustic events at the highest level, and The12 PASSIVE ON WALL’s extremely high efficiency makes it reach incredible volume levels and obtain an impressive cinema sound even with lower amplifier power. A perfect solution as either screen channels, or also surround channels in large home cinema.
- Combined with our Reference subwoofers you will experience unprecedented spheres of sound.
- The 12 PASSIVE ON WALL – Impressive sound even with very low amplifier power
