Ascendo- The 10 Wedge
Specifications
| Speaker type | 10″ time coherent point-source coaxial |
| Principle | Vented |
| Passive | Active | Passive |
| SPL | Measured data 120 dB cont. / 130 dB peak |
| Frequency range | Measure data 100 Hz – 20 kHz / -3dB |
| Efficiency | 97 dB / 1W/m |
| Power handling | 500 W |
| Impedance | 8 Ω |
| Woofer | 10″ woofer |
| Tweeter | 1″ Compression driver |
| Directivity horizontal x vertical in Deg° | 85° x 85° |
| Input terminal | One 4-conductor Phoenix 12 AWG (3,3 mm²) |
| Enclousure | MDF |
| Width | 14,7 ” | 360 mm vertical 14,7 ” | 360 mm horizontal |
| Hight | 15,04 ” | 382 mm vertical 8,62 ” | 219 mm horizontal |
| Depth (without grille) | 8,62 ” | 219 mm vertical 15,04 ” | 382 mm horizontal |
| Weight | 28,66 lbs | 13 kg |
| Finish | Matte black |
| Mounting | Metal wall or ceiling mounting brackets that allows to angle the speaker further in two axes + 8 wall mount brackets, which allow to hang the speaker in multiple ways on the wall + VESA 200 x 100 mounting points |

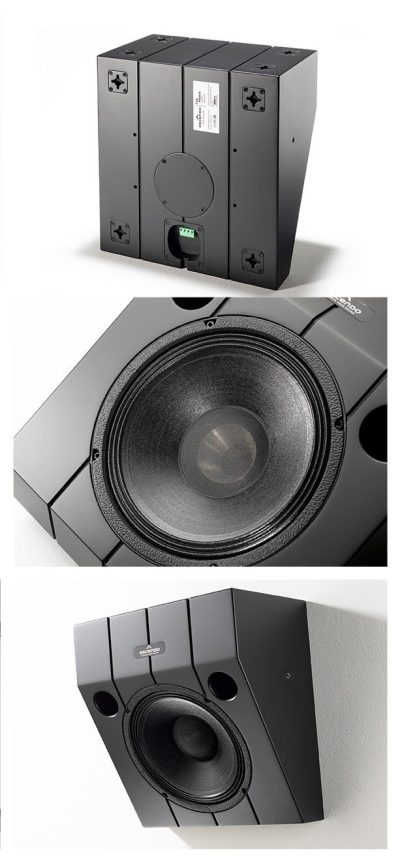

THE 10 PASSIVE WEDGE
The design objective for this model was to offer a pre-angled version of THE10 PASSIVE ON WALL that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.
The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.
THE10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
