B&W CCM8.5 D DIAMOND IN-CEILING SPEAKER

B&W CCM8.5 D DIAMOND IN-CEILING SPEAKER

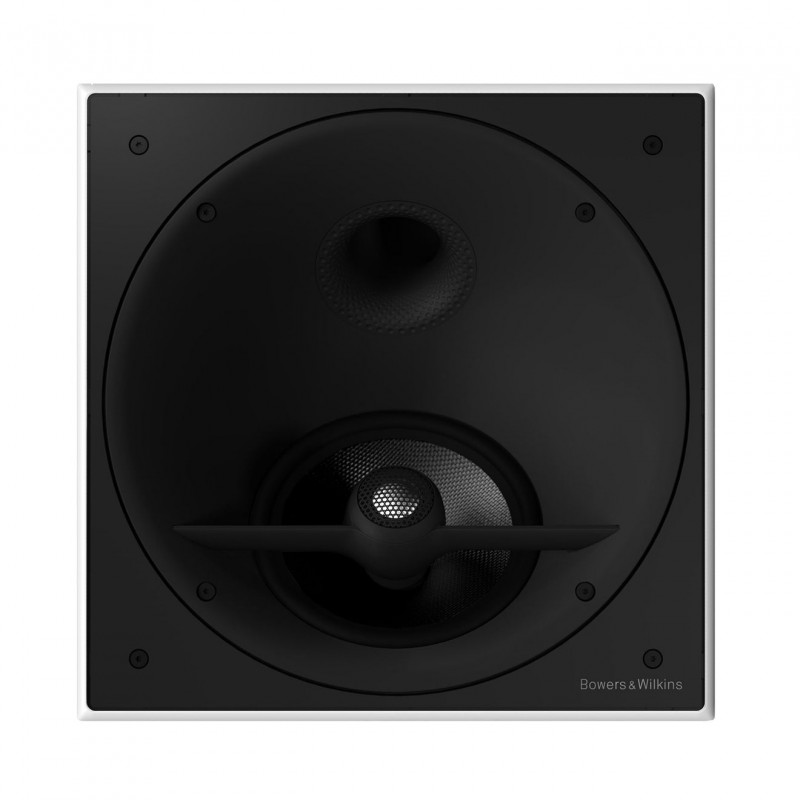

CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality acoustics in an incredibly discreet package. It features a decoupled Diamond dome tweeter and a single 7inch bass/midrange Continuum driver with an anti-resonance plug. All the drive units are located in a rotatable mini-baffle which allows the user to ‘toe in’ the drive units of the loudspeaker for the best performance. For optimum discretion when installed, the Continuum cone is given a dark finish.

See nothing, hear everything

CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality acoustics in an incredibly discreet package.

It features a decoupled Diamond dome tweeter and a single 7inch bass/midrange Continuum driver with anti-resonance plug. All the drive units are located in a rotatable mini-baffle which allows the user to ‘toe in’ the drive units of the loudspeaker for the best performance.

For optimum discretion when installed, the Continuum cone is given a dark finish.

Description: 2-way in-ceiling loudspeaker

Technical features: Aluminium Tweeter ‘wing’ Rotatable aluminium mini-baffle allows ‘toe-in’ Diamond Dome, NautilusTM tube-loaded tweeter Anti-resonance plug FlowportTM

Drive units: 1x ø25mm (1in) Diamond Dome, NautilusTM tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug

Frequency range (-6dB): 35Hz – 35kHz

Recommended Amplifier Power: 120W

Sensitivity: 88dB

Nominal Impedance: 8Ω

Frame (width/height): 351mm (13.8in)

Cut-out (width/height): 331mm (13in)

Protrusion: 8mm (0.3in)

Net weight: 5kg

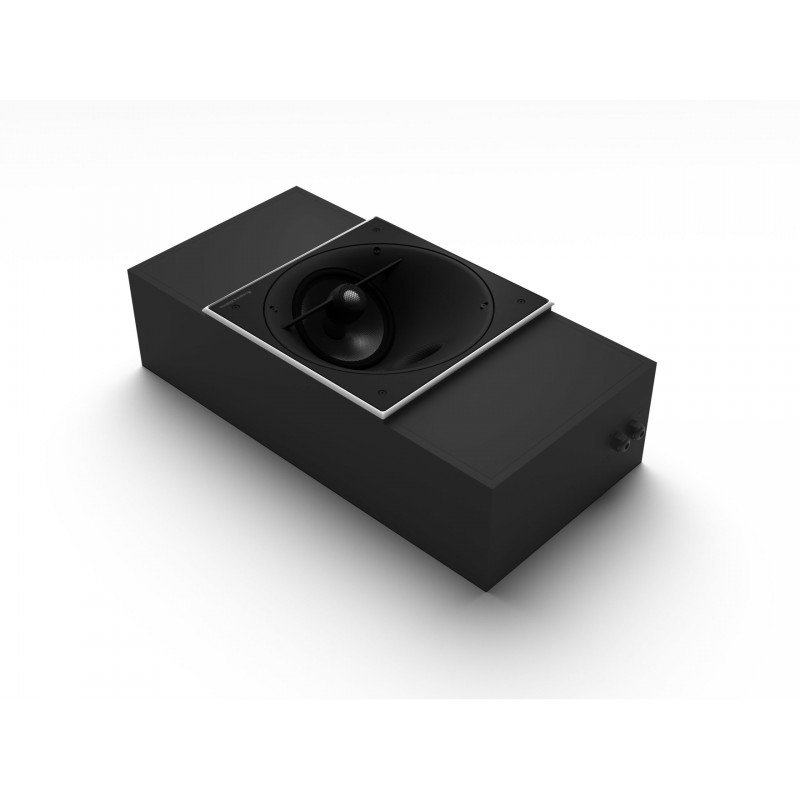

Back Box: BB CCM8.5

NB: Price listed is for “each” speaker.  Custom Install range may require back order from the distributor. Please contact store for availability.
