Ascendo -The12 Wedge
Specifications
| Speaker type | Time coherent 12″ beryllium point-Source |
| Enclosure type | Vented |
| Passive / Active | Passive |
| Cont./peak output | 126 dB cont. / 129 dB peak |
| Frequency Range | 75 Hz to 21 kHz |
| Efficiency | 97 dB / 1W/m |
| Power Handling | 900W |
| Impedance | 8 Ω |
| Woofer | 12″, 300mm |
| Tweeter | 1.4″ (Throat) Beryllium compression driver |
| Directivity Horizontal x Vertical in Deg° | 85° x 85° |
| Input Terrminal | Neutrik Speakon |
| Enclosure | Internally braced birch ply |
| Width | 19,69″ / 500 mm Horizontal |
| Height | 17,72″ / 450 mm Horizontal |
| Depth With Plug | 7,11-11,74″ / 180,61 – 228,17 mm, Angle 15° |
| Depth grill | 0,39″ / 10 mm |
| Weight | 50,70 lbs / 23,0 kg |
| Finish | Structural paint black |
| Custom colour options | Genuine piano lacquer (12 layers): matt lacquer: colour of choice, other finishes upon request |
| Shape customization | Possible, upon request |

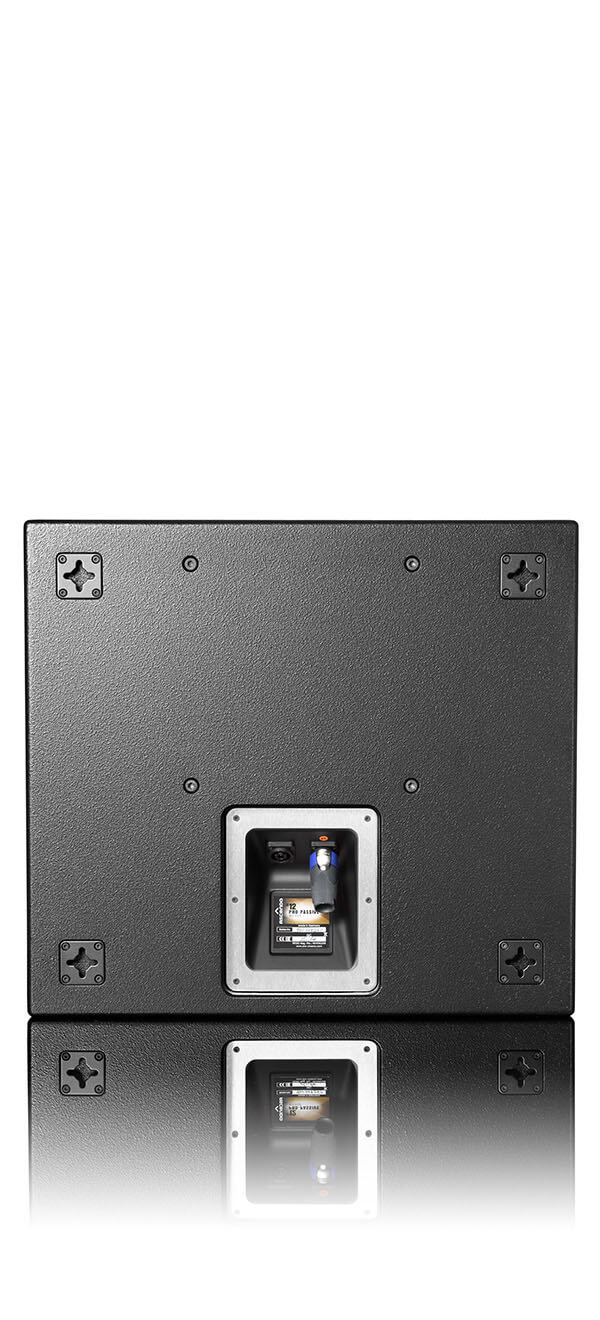

| Mounting | 4 x wall brackets for horizontal and vertical installation, VESA 200 mounting option |

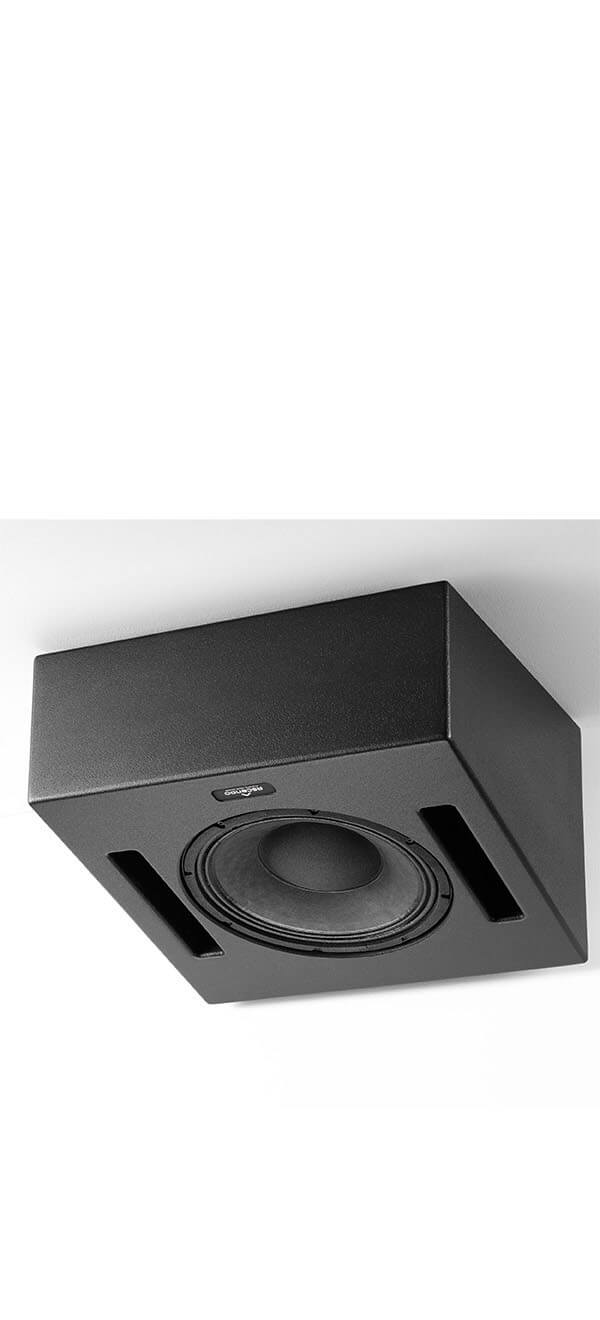

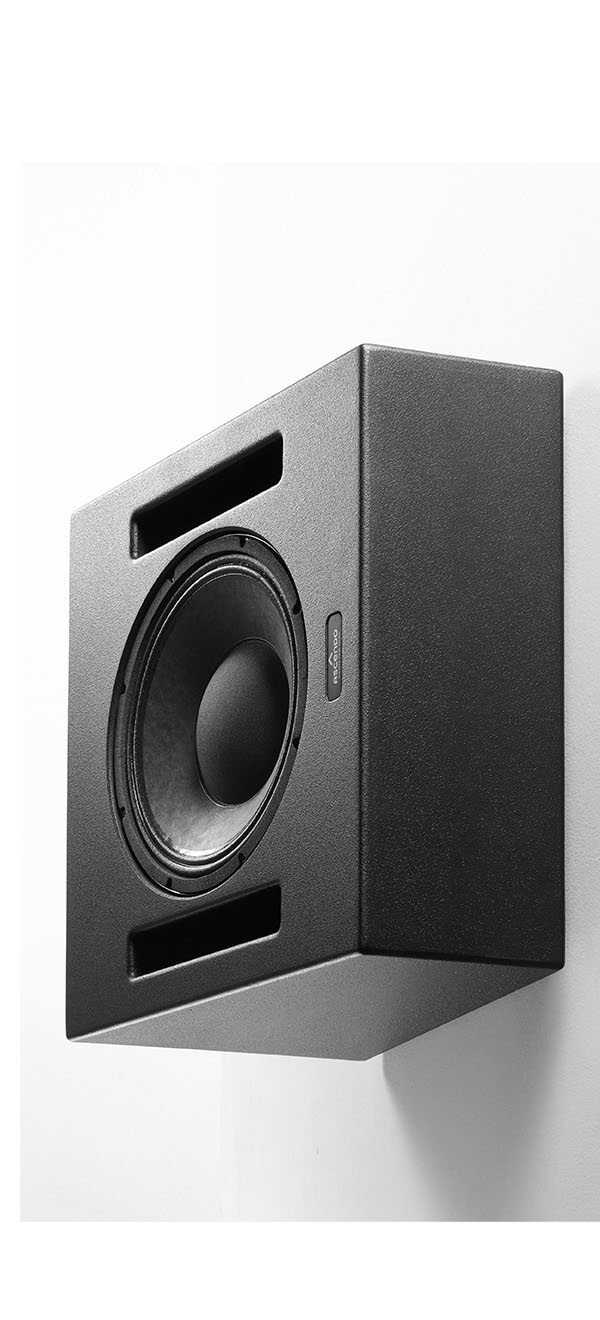

- The design objective for this model was to offer a pre-angled version of The12 BE PRO PASSIVE that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.
- The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.
- The12 BE PRO PASSIVE WEDGE is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
