Ascendo- The 6
Specifications
| Speaker type | 6.5″ Time coherent point-source coaxial |
| Principle | Vented |
| Passive | Active | Passive |
| SPL | Measurement data 111 dB cont. / 122 dB peak |
| Frequency range | Measurement data 100 Hz – 20 kHz |
| Efficiency | 93 dB / 1W/m |
| Power Handling | 200W |
| Nominal Impedance | 8 Ω |
| Woofer | 6.5″ woofer |
| Tweeter | 1″ soft dome tweeter |
| Directivity horizontal x vertical in Deg° | 85° x 85° |
| Input terminal | One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post |
| Enclousure | MDF |
| Width | 10,24 ” | 260 mm |
| Hight | 17,32 ” | 440 mm |
| Depth (without grille) | 3,46 ” | 88 mm |
| Weight | 11,46 lbs 5,2 kg |
| Custom colour options | Piano lacquer (12 layers): colour of choice, matt or other finishes upon request |
| Shape customization | Upon request |

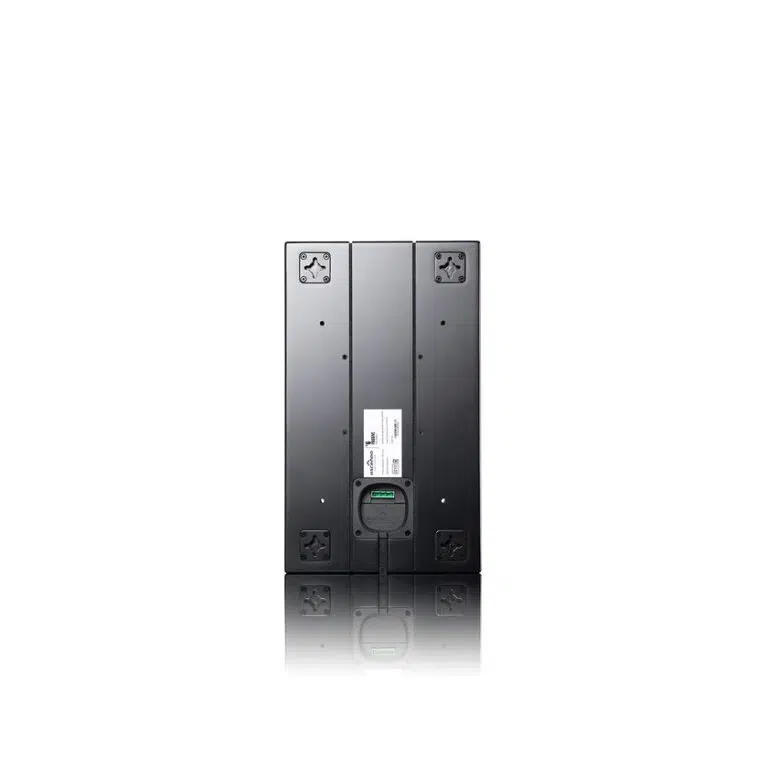

| Mounting | 4 x wall mount brackets for horizontal and vertical installation + VESA 100 mounting points + 4 though holes for direct wall or ceiling mounting |
Ideal Uses In Your Immersive Cinema:
- Front LCR (Left Centre Right)
- Surround
Key Features:
- Passive
- Only 88mm depth
- Various wall mounting options
Your entry into the fascinating world of Immersive Audio
Does quality need to be a matter of size and budget? This new 6.5″ addition to the CCM speaker series of ASCENDO was designed by our engineers to offer the highest performance ratio to speaker volume.
We employ the same proven two way axi-symmetric point source coaxial technology as the larger CCRM speaker series in a more compact packaging. The CCM6-P ideally accompanies the CCM5 and if desired the new SV-12 subwoofer in an all ASCENDO budget high-performance system. It can serve as a surround and ceiling speaker in larger home theatre systems as well as a music background speaker paired with a subwoofer.
The optional in-wall mounting kit will convert the CCM6-P into a flexible in-wall speaker.
The high sensitivity of 93dB/w/m paired with 200W RMS power handling lets you use this speaker with lower power receivers or very high-power amplifiers to achieve record SPL for reference level home theatre projects. Another major advantage of the CCM6-P is its shallow depth of only 88 mm.
